Grinding wheel codes are a compact language for buyers, production engineers, and maintenance teams. A full code normally points to five essentials: abrasive type, grit size, grade, structure, and bond. When you know how to read those elements together, you can move from a confusing label to a practical wheel selection discussion.
What does a grinding wheel code tell you?
A grinding wheel specification code is not just a stock number. In most industrial cases, it summarizes:
- Abrasive type
- Grit size
- Grade or wheel hardness
- Structure or porosity
- Bond type
That means the code helps you compare products quickly, but it should never be read in isolation. The same code logic still needs to be matched with workpiece material, machine setup, dressing condition, coolant strategy, and required surface finish.
Why the code matters to buyers and engineers
Many buyers receive a wheel drawing, an old sample, or a brief specification from a machine operator. If the code is misunderstood, the result can be poor form holding, loading, burn risk, unstable cutting action, or an unnecessarily short wheel life. Reading the code correctly is the first step toward a safe and efficient recommendation.
What do common abrasive codes mean?
At Zhongxin, conventional abrasive letters are commonly explained as follows:
| Code | Meaning | Typical note |
|---|---|---|
| WA | White fused alumina | Often used where cooler cutting and cleaner fracture behavior are preferred |
| A | Brown fused alumina | General conventional alumina route for many steel applications |
| GC | Green silicon carbide | Commonly discussed for hard and brittle materials or special application needs |
| C | Black silicon carbide | Another silicon carbide family option depending on process need |
| PA | Chromium alumina | Specialty alumina route for selected grinding conditions |
| SA | Monocrystalline alumina | Useful where sharp cutting action and anti-loading behavior matter |
| Diamond | Superabrasive | Typically paired with suitable bond systems for very hard materials |
| CBN | Cubic boron nitride | Common superabrasive route for ferrous grinding applications |
What do grit, grade, structure, and bond mean?
Grit size
Grit size describes how coarse or fine the abrasive particles are. Coarser grits normally support faster stock removal, while finer grits are generally selected for tighter finish expectations and more refined contact behavior.
Grade or wheel hardness
Grade refers to how strongly the bond holds the abrasive grains. It is about wheel holding strength, not workpiece hardness. A wrong grade can lead to premature dulling, excessive shedding, or thermal damage.
Structure or porosity
Structure indicates the spacing between abrasive grains. A more open structure can help chip clearance and reduce loading in certain materials, while a denser structure may support different finish or form-holding goals.
Bond type
Bond type explains how the wheel is held together. Vitrified and resin bonds are common discussion points in conventional wheel selection. Metal bond and electroplated routes are more often associated with diamond or CBN systems in specialized applications.
How should buyers use the code in real selection?
- Match the code to the workpiece material. A wheel that performs well on one alloy may load badly on another.

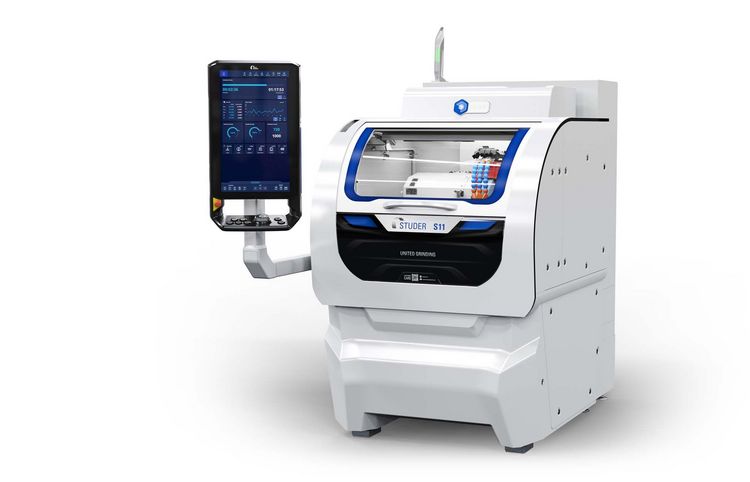

- Check the machine context. Surface grinding, cylindrical grinding, centerless grinding, and CNC-supported operations can require different balances of aggressiveness and control.
- Confirm finish and tolerance targets. The right code depends on what the process must achieve, not only on what is written on the old label.
- Review dressing and coolant conditions. These strongly influence whether the wheel behaves as expected.
How Zhongxin can help interpret wheel specifications
If you have a code on an old wheel but are not sure whether it still matches your current process, Zhongxin can help review the application from code reading to working recommendation. In practice, the most useful conversation includes material, machine type, wheel size, operating speed, coolant condition, and target finish together with the code itself.
That approach is more reliable than copying letters blindly, because a grinding wheel code is best understood as a system rather than an isolated string.
Conclusion
When buyers ask for a wheel “by code,” they are really asking for a complete process match. Once you understand abrasive, grit, grade, structure, and bond, you can read the label with much more confidence and ask better technical questions before purchase.
